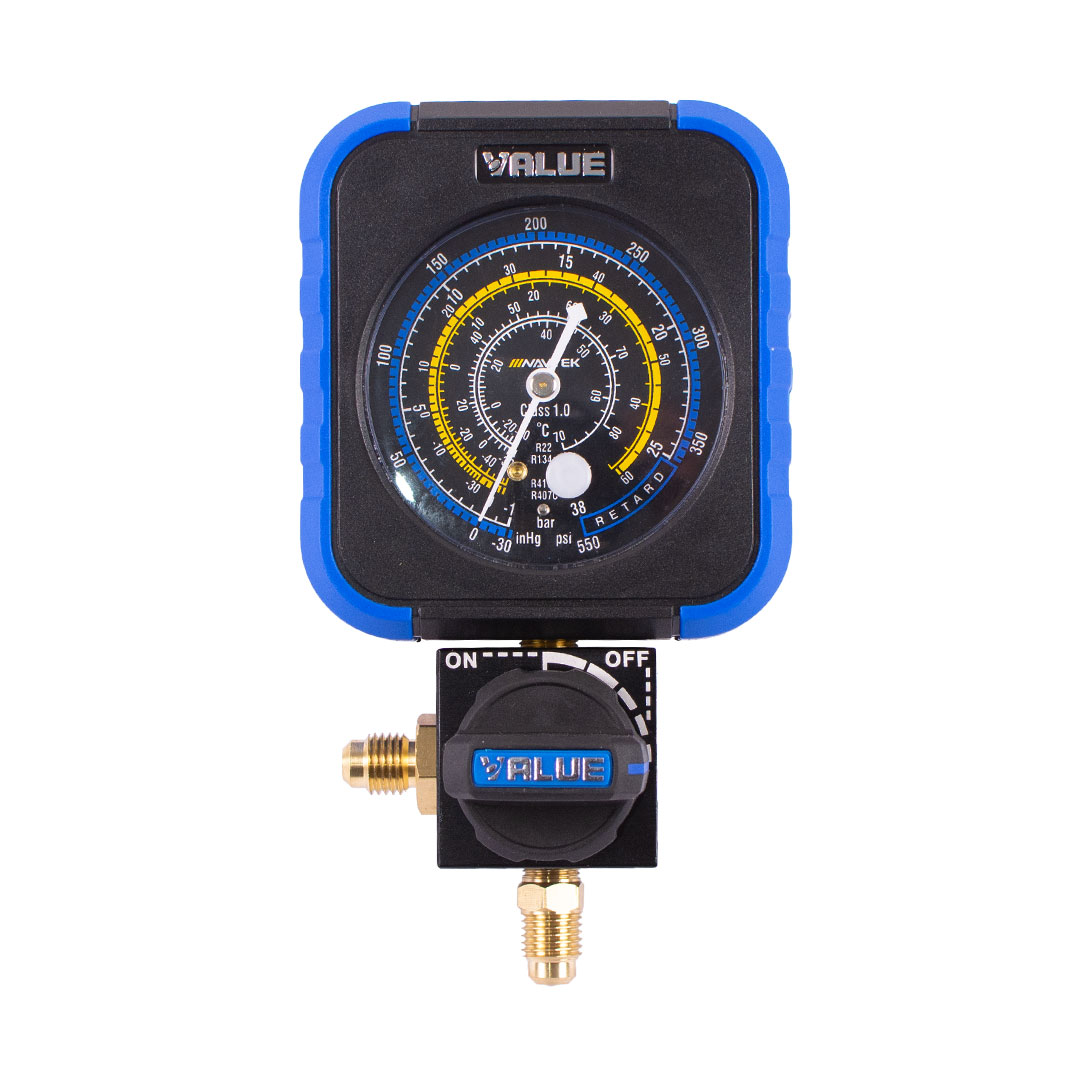

VALUE Manifold Gauge Model VRM1-B-0404
Let’s take a closer look at the specifications of the “VALUE Manifold Gauge Model VRM1-B-0404.” This product features low-pressure gauge (red) ranging from 30- inHg to 0 and 0 to 550PSI. It is compatible with gases such as R22, R134a, R410A, and R407C. The pressure measurement units include psi, inHg, and bar
What is a Manifold Gauge Set?
A manifold gauge set is an essential tool for HVAC operations, including air evacuation, pressure measurement, refrigerant recovery and charging, oil charging, and pressure testing. It helps in maintaining and servicing air conditioning systems efficiently.
Manifold Components Overview
- Low-Pressure Side (Blue):
Contains the manual valve, hose, and gauge. Measures up to 550 PSI for charging and monitoring refrigerants and supports vacuuming and air evacuation from 0 to -30 inHg. - High-Pressure Side (Red):
Contains the manual valve, hose, and gauge. Measures up to 800 PSI for charging and monitoring refrigerants and supports vacuuming and air evacuation from 0 to -30 inHg. - Middle Hose (Yellow):
Connects the manifold set to refrigerant supply, vacuum pump, or oil container.
Hoses Specifications
- Color-Coded Hoses:
Blue for Low Pressure, Red for High Pressure, and Yellow for Service. - Standard Working Pressure: Up to 550PSI
- Factory Test Pressure: Up to 2000 PSI
