Value S1 Condensate Pump

Value S1 Condensate Pump

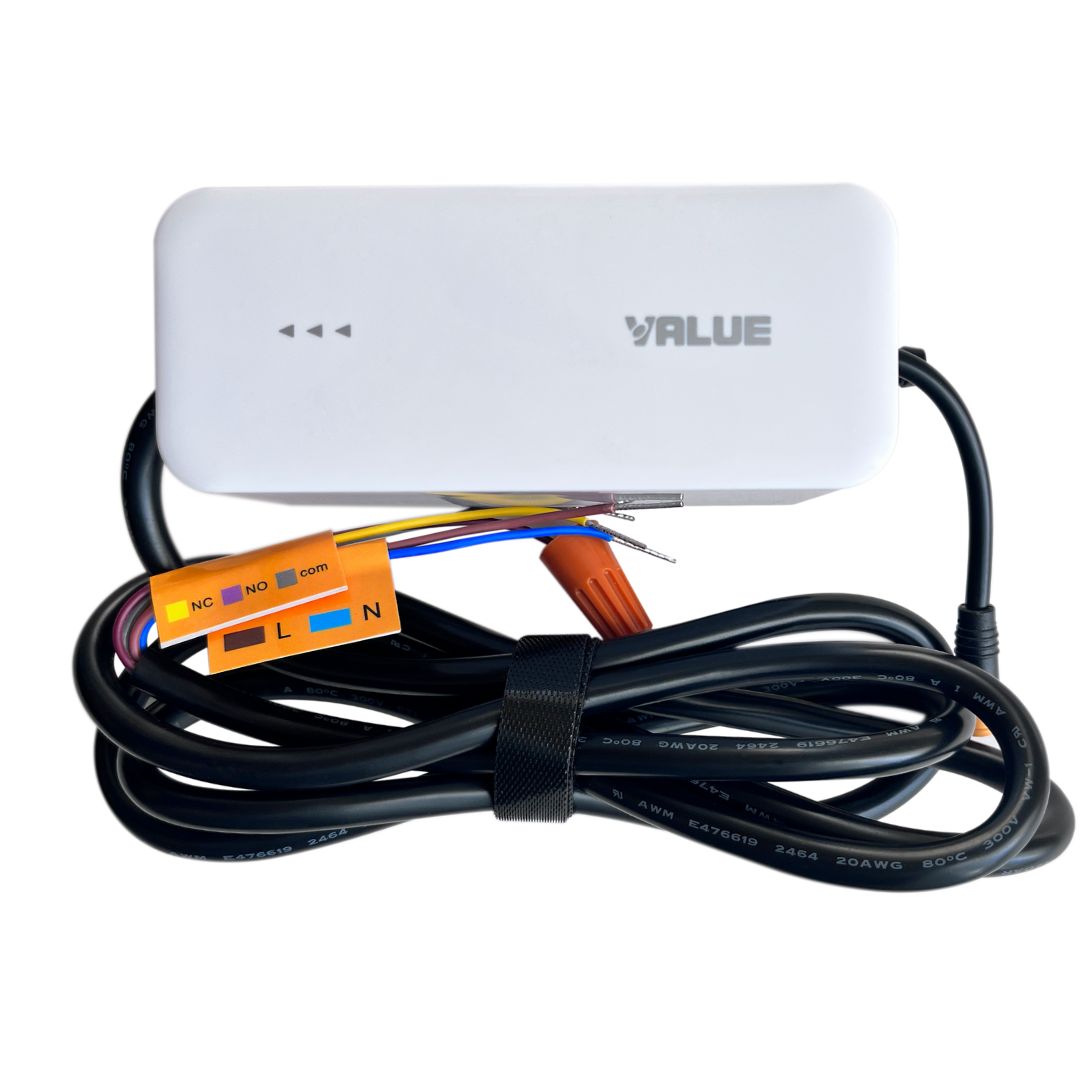

The VALUE S1 mini-slim condensate pump (drain pumps) is designed for efficient operation, boasting a flow rate of 24 liters per hour. Moreover, it is suitable for splits up to 30,000 BTU/hour (8.8 kW). This new line of condensate pumps, developed by a leading HVACR equipment manufacturer, excels in various applications.

In addition, this pump is widely used with split, ducted, and cassette-type air conditioning units, as well as other appliances that produce small amounts of condensate. Thus, it meets a diverse range of cooling needs.

Key Features

Equipped with a brushless DC motor, the S1 ensures low noise and vibration. Furthermore, it includes essential safety features such as a safety switch and a probe sensor, which together maintain the pump’s high performance. As a result, users enjoy quiet and durable operation with an extended service life.

Other highlights include:

• Compact design for easy installation in tight spaces
• Quick connection and convenient maintenance
• Electrode water level sensor for accurate detection

Condensate Pump Installation Instructions

You can easily install the pump in the A/C duct or at the back of the A/C indoor unit, providing versatile application options. Consequently, this flexibility enhances its usability in various settings.

Technical Specifications

• Power Supply: 220 V, 50 Hz
• Max Vertical Discharge Height: 10 metres
• Max Flow Rate: 24 liters/hour
• Tank Capacity: 50 ml
• Internal Diameter of Condensate Outlet Pipe: 6 mm
• Suitable for Mini Splits: Up to 30,000 BTU/hour (8.8 kW)
• Sound Level at 1 Meter: 19 dB(A)
• Ambient Temperature Range: 0-50 °C
• Pump Dimensions: 126 x 44 x (h) 52 mm
• Tank Dimensions: 83 x 40 x (h) 47 mm

Ultimately, the VALUE S1 mini-slim condensate pump combines efficiency with versatility. Therefore, it is an excellent choice for silent and robust operation in various HVAC systems. With its innovative features and reliable performance, it truly stands out in the market.
